PPD

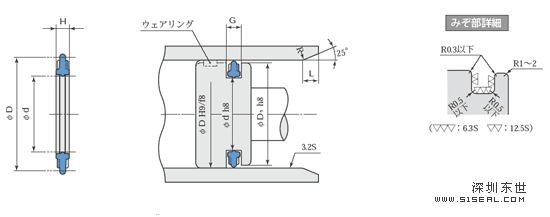

型号明细	互换PSD	密封件的公称尺寸及腔体尺寸（単位：mm)
标准 （RN 729）		D	d	H	G		D1	L
PPD-10	*PSD-10	10	5.4	1.6	1.8	＋0.1 0	9.7	1.5
PPD-12	*PSD-12	12	7.4	1.6	1.8		11.7	1.5
PPD-15	*PSD-15	15	10.4	1.6	1.8		14.7	1.5
PPD-16	*PSD-16	16	11.4	1.6	1.8		15.7	1.5
PPD-20	*PSD-20	20	14	2.2	2.4		19.5	1.5
PPD-25	*PSD-25	25	17	3	3.2	+0.15 0	24.5	2
PPD-30	*PSD-30	30	22	3	3.2		29.5	2
PPD-32	*PSD-32	32	24	3	3.2		31.5	2
PPD-40	*PSD-40	40	32	3	3.2		39.5	2
PPD-50	*PSD-50	50	40	3.7	4	＋0.25 0	49.5	2.5
PPD-63	*PSD-63	63	53	3.7	4		62.4	2.5
PPD-80	*PSD-80	80	65	5.6	6		79.4	3
PPD-100	*PSD-100	100	85	5.6	6		99.4	3
*PPD-125	*PSD-125	125	110	5.6	6		124.3	3.5
*PPD-140	*PSD-140	140	125	5.6	6		139.3	3.5
*PPD-160	*PSD-160	160	140	7.6	8		159.3	5
*PPD-180	*PSD-180	180	160	7.6	8		179.3	5
