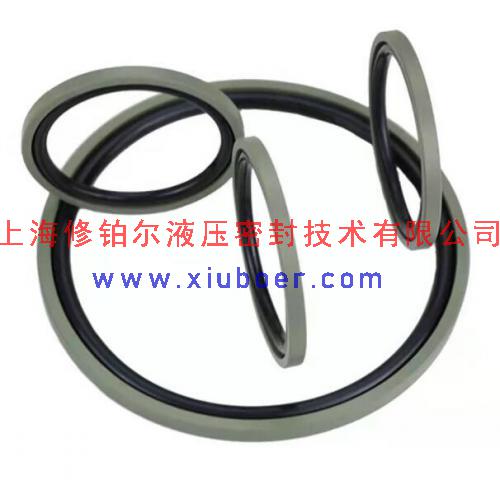

活塞密封 SPGO密封圈

标准材料:密封件:填充聚四氟乙烯F-PTFE,0形圈:丁腈橡胶NBR或氟橡胶FKM

应用范围:这是一种大范围应用的标准组合密封.和SPG有相同的性能.设计选用时可参考NOK公司SPNO系列、Merkel公司TFMA系列、AS公司YL系列标准.特点:滑动材料用填充聚四氟乙烯,此密封件具有很低的摩擦阻力,消除了爬行,确保有很高的耐磨性.因单个密封件有双向密封能力,故省去了安装空间。



速  度	压力范围	温度范围	介  质	可供直径范围
1.5m/s	0～35MPa	-30℃ +200℃	通用石油基液压油，水乙二醇液压油，油-水乳化型液压油	20-1000mm

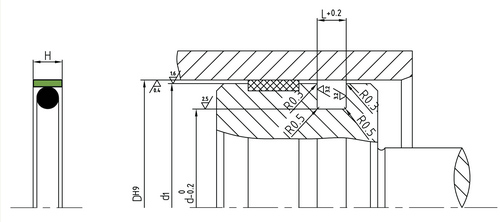

SPGO密封圈
订货号	密封件的公称尺寸			L+0.2		订货号	密封件的公称尺寸			L+0.2
	D	d	H				D	d	H
SPGO0200	20.0	14.0	3.0	3.2		SPGO1250	125	111	6.3	6.5
SPGO0250	25.0	19.0	3.0	3.2		SPGO1300	130	116	6.3	6.5
SPGO0300	30.0	21.5	3.8	4.0		SPGO1350	135	121	6.3	6.5
SPGO0315	31.5	23.0	3.8	4.0		SPGO1400	140	126	6.3	6.5
SPGO0320	32.0	23.5	3.8	4.0		SPGO1500	150	136	6.3	6.5
SPGO0350	35.0	26.5	3.8	4.0		SPGO1600	160	146	6.3	6.5
SPGO0355	35.5	27.0	3.8	4.0		SPGO1700	170	150	9.8	10.0
SPGO0400	40.0	31.5	3.8	4.0		SPGO1800	180	160	9.8	10.0
SPGO0450	45.0	36.5	3.8	4.0		SPGO1900	190	170	9.8	10.0
SPGO0500	50.0	41.5	3.8	4.0		SPGO2000	200	180	9.8	10.0
SPGO0530	53.0	44.5	3.8	4.0		SPGO2100	210	190	9.8	10.0
SPGO0550	55.0	46.5	3.8	4.0		SPGO2200	220	200	9.8	10.0
SPGO0560	56.0	47.5	3.8	4.0		SPGO2240	224	204	9.8	10.0
SPGO0600	60.0	51.5	3.8	4.0		SPGO2300	230	210	9.8	10.0
SPGO0630	63.0	49.0	6.3	6.5		SPGO2400	240	220	9.8	10.0
SPGO0650	65.0	51.0	6.3	6.5		SPGO2500	250	230	9.8	10.0
SPGO0700	70.0	56.0	6.3	6.5		SPGO2600	260	240	9.8	10.0
SPGO0710	71.0	57.0	6.3	6.5		SPGO2700	270	250	9.8	10.0
SPGO0750	75.0	61.0	6.3	6.5		SPGO2800	280	260	9.8	10.0
SPGO0800	80.0	66.0	6.3	6.5		SPGO2900	290	270	9.8	10.0
SPGO0850	85	71	6.3	6.5		SPGO3000	300	280	9.8	10.0
SPGO0900	90	76	6.3	6.5		SPGO3100	310	290	9.8	10.0
SPGO0950	95	81	6.3	6.5		SPGO3200	320	300	9.8	10.0
SPGO1000	100	86	6.3	6.5		SPGO3400	340	320	9.8	10.0
SPGO1050	105	91	6.3	6.5		SPGO3500	350	330	9.8	10.0
SPGO1100	110	96	6.3	6.5		SPGO3600	360	340	9.8	10.0
SPGO1120	112	98	6.3	6.5		SPGO3750	375	355	9.8	10.0
SPGO1150	115	101	6.3	6.5		SPGO3800	380	360	9.8	10.0
SPGO1200	120	106	6.3	6.5		SPGO4000	400	380	9.8	10.0
