标准材料,密封体:填充聚四氟乙烯F-PTFE,弹性体:丁腈橡胶NBR或聚氨酯PU
.应用范围:JDMI用于多种液态应用的串联式密封，属内部密封。主要用于活塞和柱塞密封。可在矿物油、改性矿物油、难燃液压油和压缩空气中使用。JDMI由一个双唇口的弹性体，一个耐磨环组成的组合密封。安装前，密封唇口向外突出，安装后紧压活塞杆，为耐磨环提供弹力，即使在没有压力的情况下也能达到优秀的密封效果。可分离密封环两边的液体，也适用于油室的密封，以阻止和其它液体的入侵。由于其优秀的干运转性能，可同时作流体密封和防尘密封。设计选用时可参考Hunger公司TDMI系列标准.特点:安装简易,高耐磨,低摩擦，无粘滑现象
工况条件
|
速 度
|
压力范围
|
温度范围
|
介 质
|
可供直径范围
|
|
1m/s
|
0～25MPa
|
-30℃ +100℃
|
石油基液压油，难燃液压液，水和其它
|
20-1000 mm
|

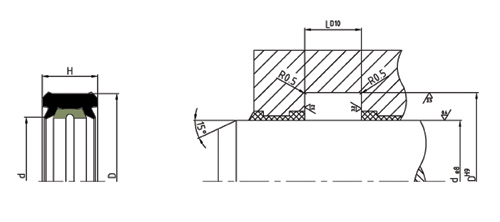

安装尺寸
|
轴径d e8
|
沟槽外径D H9
|
槽宽L D10
|
H
|
|
20-56
|
d+10
|
16
|
15
|
|
57-140
|
d+13
|
16
|
15
|
|
>140
|
d+15
|
16
|
15
|
| TDMI 活塞杆密封 |
| 订货号 |
d e8 |
D H9 |
H |
L D10 |
e |
|
订货号 |
d e8 |
D H9 |
H |
L D10 |
e |
| TDMI0200 |
20 |
30 |
15 |
16 |
6 |
TDMI1400 |
140 |
153 |
15 |
16 |
10 |
| TDMI0220 |
22 |
32 |
15 |
16 |
6 |
TDMI1500 |
150 |
162 |
15 |
16 |
10 |
| TDMI0250 |
25 |
35 |
15 |
16 |
6 |
TDMI1500 |
150 |
165 |
15 |
16 |
10 |
| TDMI0280 |
28 |
38 |
15 |
16 |
6 |
TDMI1600 |
160 |
175 |
15 |
16 |
10 |
| TDMI0300 |
30 |
40 |
15 |
16 |
6 |
TDMI1650 |
165 |
180 |
15 |
16 |
10 |
| TDMI0320 |
32 |
42 |
15 |
16 |
6 |
TDMI1700 |
170 |
185 |
15 |
16 |
10 |
| TDMI0350 |
35 |
45 |
15 |
16 |
6 |
TDMI1800 |
180 |
195 |
15 |
16 |
10 |
| TDMI0360 |
36 |
46 |
15 |
16 |
6 |
TDMI1850 |
185 |
200 |
15 |
16 |
10 |
| TDMI0400 |
40 |
50 |
15 |
16 |
6 |
TDMI1900 |
190 |
205 |
15 |
16 |
10 |
| TDMI0420 |
42 |
52 |
15 |
16 |
6 |
TDMI2000 |
200 |
215 |
15 |
16 |
10 |
| TDMI0450 |
45 |
55 |
15 |
16 |
6 |
TDMI2200 |
220 |
235 |
15 |
16 |
10 |
| TDMI0500 |
50 |
60 |
15 |
16 |
6 |
TDMI2250 |
225 |
240 |
15 |
16 |
10 |
| TDMI0550 |
55 |
65 |
15 |
16 |
6 |
TDMI2300 |
230 |
245 |
15 |
16 |
10 |
| TDMI0560 |
56 |
66 |
15 |
16 |
6 |
TDMI2400 |
240 |
255 |
15 |
16 |
10 |
| TDMI0600 |
60 |
73 |
15 |
16 |
7 |
TDMI2500 |
250 |
265 |
15 |
16 |
10 |
| TDMI0630 |
63 |
76 |
15 |
16 |
7 |
TDMI2600 |
260 |
275 |
15 |
16 |
10 |
| TDMI0650 |
65 |
78 |
15 |
16 |
7 |
TDMI2800 |
280 |
295 |
15 |
16 |
10 |
| TDMI0700 |
70 |
83 |
15 |
16 |
7 |
TDMI2900 |
290 |
305 |
15 |
16 |
10 |
| TDMI0720 |
72 |
85 |
15 |
16 |
7 |
TDMI3000 |
300 |
312 |
15 |
16 |
15 |
| TDMI0750 |
75 |
88 |
15 |
16 |
7 |
TDMI3000 |
300 |
315 |
15 |
16 |
15 |
| TDMI0800 |
80 |
93 |
15 |
16 |
7 |
TDMI3200 |
320 |
335 |
15 |
16 |
15 |
| TDMI0850 |
85 |
98 |
15 |
16 |
7 |
TDMI3500 |
350 |
365 |
15 |
16 |
15 |
| TDMI0900 |
90 |
103 |
15 |
16 |
7 |
TDMI3600 |
360 |
375 |
15 |
16 |
15 |
| TDMI0950 |
95 |
108 |
15 |
16 |
7 |
TDMI3800 |
380 |
395 |
15 |
16 |
15 |
| TDMI1000 |
100 |
113 |
15 |
16 |
7 |
TDMI4000 |
400 |
415 |
15 |
16 |
15 |
| TDMI1050 |
105 |
118 |
15 |
16 |
10 |
TDMI4500 |
450 |
465 |
15 |
16 |
15 |
| TDMI1100 |
110 |
120 |
15 |
16 |
10 |
TDMI4800 |
480 |
495 |
15 |
16 |
15 |
| TDMI1100 |
110 |
123 |
15 |
16 |
10 |
TDMI5000 |
500 |
515 |
15 |
16 |
15 |
| TDMI1150 |
115 |
128 |
15 |
16 |
10 |
TDMI5500 |
550 |
565 |
15 |
16 |
15 |
| TDMI1200 |
120 |
133 |
15 |
16 |
10 |
TDMI5600 |
560 |
575 |
15 |
16 |
15 |
| TDMI1250 |
125 |
138 |
15 |
16 |
10 |
TDMI6000 |
600 |
615 |
15 |
16 |
15 |
| TDMI1300 |
130 |
143 |
15 |
16 |
10 |
TDMI6500 |
650 |
665 |
15 |
16 |
15 |
