标准材料,密封环:填充聚四氟乙烯F-PTFE,0形圈:丁腈橡胶NBR
应用范围:由一个PTFE矩形截面滑环和一个作为加载元件的矩形圈组成的双组合密封圈。此种型式的同轴密封，主要用于重型机械或冶金设备的液压缸活塞密封系统。如：液压机、注塑机等。设计选用时可参考Merkel公司OMK-S产品标准。
特点:耐压性很高,结构防扭曲,防挤出特性非常好,耐腐蚀性高,导热性好,低摩擦,不会造成“液压爬行”,由于有橡胶异形圈，接触压力高
|
速 度
|
压力范围
|
温度范围
|
介 质
|
可供直径范围
|
|
5m/s
|
0～60MPa
|
-30℃ +100℃
|
液压油、难燃液压液、环保安全液压液（生物油）、水和其它，取决于密封圈材质
|
40-2000 mm
|
|

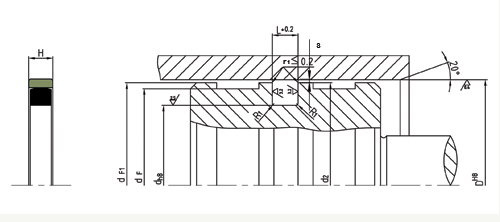

轴径
|
底径
|
沟槽宽度
|
圆角
|
径向间隙 S max
|
|
D H8
|
d h8
|
L+0.2
|
r1
|
16 MPa
|
26 MPa
|
32 MPa
|
40 MPa
|
|
55.0-149.9
|
D-10.0
|
10.0
|
0.4
|
0.60
|
0.50
|
0.40
|
0.40
|
|
150.0-244.9
|
D-12.5
|
12.5
|
0.4
|
0.75
|
0.65
|
0.55
|
0.50
|
|
245.0-500.0
|
D-15.0
|
15.0
|
0.8
|
0.75
|
0.65
|
0.55
|
0.50
|
|
500.1-760.0
|
D-17.5
|
17.5
|
1.2
|
0.75
|
0.65
|
0.55
|
0.50
|
|
760.1-999.9
|
D-20.0
|
20.0
|
1.2
|
0.80
|
0.70
|
0.60
|
0.55
|
|
≧1000
|
D-20.0
|
20.5
|
1.2
|
0.80
|
0.70
|
0.60
|
0.55
|
| GSF-S 重载孔用格莱圈(格来圈) |
| 订货号 |
缸径 |
底径 |
宽度 |
|
订货号 |
缸径 |
底径 |
宽度 |
| D H8 |
d h8 |
L+0.2 |
D H8 |
d h8 |
L+0.2 |
| GSF-S0550 |
55 |
40 |
10.0 |
GSF-S5100 |
510 |
475 |
17.5 |
| GSF-S0700 |
70 |
55 |
10.0 |
GSF-S5200 |
520 |
485 |
17.5 |
| GSF-S0800 |
80 |
60 |
10.0 |
GSF-S5300 |
530 |
495 |
17.5 |
| GSF-S0900 |
90 |
70 |
10.0 |
GSF-S5400 |
540 |
505 |
17.5 |
| GSF-S1000 |
100 |
80 |
10.0 |
GSF-S5500 |
550 |
515 |
17.5 |
| GSF-S1100 |
110 |
90 |
10.0 |
GSF-S5600 |
560 |
525 |
17.5 |
| GSF-S1200 |
120 |
100 |
10.0 |
GSF-S5650 |
565 |
530 |
17.5 |
| GSF-S1300 |
130 |
110 |
10.0 |
GSF-S5700 |
570 |
535 |
17.5 |
| GSF-S1400 |
140 |
120 |
10.0 |
GSF-S5800 |
580 |
545 |
17.5 |
| GSF-S1550 |
155 |
130 |
12.5 |
GSF-S5900 |
590 |
555 |
17.5 |
| GSF-S1650 |
165 |
140 |
12.5 |
GSF-S6000 |
600 |
565 |
17.5 |
| GSF-S1700 |
170 |
145 |
12.5 |
GSF-S6100 |
610 |
575 |
17.5 |
| GSF-S1800 |
180 |
155 |
12.5 |
GSF-S6200 |
620 |
585 |
17.5 |
| GSF-S1850 |
185 |
160 |
12.5 |
GSF-S6300 |
630 |
595 |
17.5 |
| GSF-S1900 |
190 |
165 |
12.5 |
GSF-S6400 |
640 |
605 |
17.5 |
| GSF-S2000 |
200 |
175 |
12.5 |
GSF-S6500 |
650 |
615 |
17.5 |
| GSF-S2050 |
205 |
180 |
12.5 |
GSF-S6550 |
655 |
620 |
17.5 |
| GSF-S2100 |
210 |
185 |
12.5 |
GSF-S6600 |
660 |
625 |
17.5 |
| GSF-S2150 |
215 |
190 |
12.5 |
GSF-S6700 |
670 |
635 |
17.5 |
| GSF-S2200 |
220 |
195 |
12.5 |
GSF-S6800 |
680 |
645 |
17.5 |
| GSF-S2250 |
225 |
200 |
12.5 |
GSF-S6900 |
690 |
655 |
17.5 |
| GSF-S2350 |
235 |
210 |
12.5 |
GSF-S7000 |
700 |
665 |
17.5 |
| GSF-S2450 |
245 |
215 |
15.0 |
GSF-S7100 |
710 |
675 |
17.5 |
| GSF-S2500 |
250 |
220 |
15.0 |
GSF-S7200 |
720 |
685 |
17.5 |
| GSF-S2600 |
260 |
230 |
15.0 |
GSF-S7300 |
730 |
695 |
17.5 |
| GSF-S2750 |
275 |
245 |
15.0 |
GSF-S7400 |
740 |
705 |
17.5 |
| GSF-S2850 |
285 |
255 |
15.0 |
GSF-S7500 |
750 |
715 |
17.5 |
| GSF-S2900 |
290 |
260 |
15.0 |
GSF-S7600 |
760 |
725 |
17.5 |
| GSF-S3100 |
310 |
280 |
15.0 |
GSF-S7700 |
770 |
730 |
20.0 |
| GSF-S3200 |
320 |
290 |
15.0 |
GSF-S7800 |
780 |
740 |
20.0 |
| GSF-S3250 |
325 |
295 |
15.0 |
GSF-S8000 |
800 |
760 |
20.0 |
| GSF-S3300 |
330 |
300 |
15.0 |
GSF-S8200 |
820 |
780 |
20.0 |
| GSF-S3350 |
335 |
305 |
15.0 |
GSF-S8300 |
830 |
790 |
20.0 |
| GSF-S3400 |
340 |
310 |
15.0 |
GSF-S8400 |
840 |
800 |
20.0 |
| GSF-S3500 |
350 |
320 |
15.0 |
GSF-S8500 |
850 |
810 |
20.0 |
| GSF-S3600 |
360 |
330 |
15.0 |
GSF-S8700 |
870 |
830 |
20.0 |
| GSF-S3700 |
370 |
340 |
15.0 |
GSF-S8800 |
880 |
840 |
20.0 |
| GSF-S3800 |
380 |
350 |
15.0 |
GSF-S8900 |
890 |
850 |
20.0 |
| GSF-S3900 |
390 |
360 |
15.0 |
GSF-S9000 |
900 |
860 |
20.0 |
| GSF-S4000 |
400 |
370 |
15.0 |
GSF-S9400 |
940 |
900 |
20.0 |
| GSF-S4550 |
455 |
420 |
17.5 |
GSF-S9800 |
980 |
940 |
20.0 |
| GSF-S4600 |
460 |
425 |
17.5 |
GSF-S1000 |
1000 |
960 |
20.0 |
| GSF-S4600 |
460 |
430 |
15.0 |
GSF-S10500 |
1050 |
1010 |
20.0 |
| GSF-S4800 |
480 |
450 |
15.0 |
GSF-S10900 |
1090 |
1050 |
20.0 |
| GSF-S4900 |
490 |
460 |
15.0 |
GSF-S11000 |
1100 |
1060 |
20.0 |
| GSF-S5000 |
500 |
470 |
15.0 |
GSF-S11200 |
1120 |
1080 |
20.0 |
