标准材料,密封体:填充聚四氟乙烯F-PTFE,弹性体:丁腈橡胶NBR,L环:聚甲醛POM或尼龙PA
应用范围,GGDI由一个密封环、两个L型POM（直径Ф400 mm以上用PA）支撑环和一个施力的O形圈组成活塞组合密封.支撑环起支撑和引导作用,以确保紧密的密封环境.滑环依靠O圈的施力紧压活塞,提供密封作用.可在矿物油,水基润滑液、改性水基润滑液和其他液体中使用. 设计选用时可参考Hunger公司GGDA系列标准.特点,安装简易,高耐磨,低摩擦，无粘滑现象.
工况条件
|
速 度
|
压力范围
|
温度范围
|
介 质
|
可供直径范围
|
|
1m/s
|
0～45MPa
|
-30℃ +100℃
|
石油基液压油，难燃液压液，水和其它
|
40-1000 mm
|

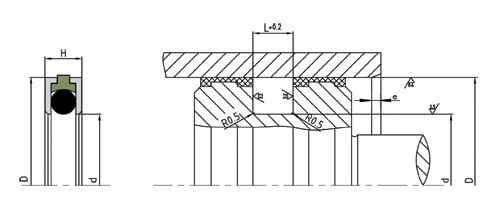

安装尺寸
|
D H8
|
d h9
|
L+0.2
|
H
|
|
<96
|
D-16.8
|
8
|
7.5
|
|
96-190
|
D-20
|
10
|
9.5
|
|
191-380
|
D-28
|
13
|
12.5
|
|
381-1000
|
D-36
|
20
|
19.5
|
| GGDA 组合密封 |
| 订货号 |
D H8
|
d h9
|
H
|
L
|
e
|
|
订货号 |
D H8
|
d h9
|
H
|
L
|
e
|
| GGDA0400 |
40
|
23.2
|
7.5
|
8
|
7
|
GGDA2400 |
240
|
212
|
12.5
|
13
|
12
|
| GGDA0450 |
45
|
28.2
|
7.5
|
8
|
7
|
GGDA2500 |
250
|
222
|
12.5
|
13
|
12
|
| GGDA0500 |
50
|
33.2
|
7.5
|
8
|
7
|
GGDA2650 |
265
|
237
|
12.5
|
13
|
12
|
| GGDA0560 |
56
|
39.2
|
7.5
|
8
|
7
|
GGDA2750 |
275
|
247
|
12.5
|
13
|
12
|
| GGDA0630 |
63
|
46.2
|
7.5
|
8
|
7
|
GGDA2800 |
280
|
252
|
12.5
|
13
|
12
|
| GGDA0650 |
65
|
48.2
|
7.5
|
8
|
7
|
GGDA2900 |
290
|
262
|
12.5
|
13
|
12
|
| GGDA0700 |
70
|
53.2
|
7.5
|
8
|
7
|
GGDA3000 |
300
|
272
|
12.5
|
13
|
12
|
| GGDA0750 |
75
|
58.2
|
7.5
|
8
|
7
|
GGDA3100 |
310
|
282
|
12.5
|
13
|
15
|
| GGDA0800 |
80
|
63.2
|
7.5
|
8
|
7
|
GGDA3200 |
320
|
292
|
12.5
|
13
|
15
|
| GGDA0850 |
85
|
68.2
|
7.5
|
8
|
7
|
GGDA3400 |
340
|
312
|
12.5
|
13
|
15
|
| GGDA0900 |
90
|
73.2
|
7.5
|
8
|
7
|
GGDA3500 |
350
|
322
|
12.5
|
13
|
15
|
| GGDA0950 |
95
|
78.2
|
7.5
|
8
|
7
|
GGDA3600 |
360
|
332
|
12.5
|
13
|
15
|
| GGDA1000 |
100
|
80
|
9.5
|
10
|
10
|
GGDA3800 |
380
|
352
|
12.5
|
13
|
15
|
| GGDA1050 |
105
|
85
|
9.5
|
10
|
10
|
GGDA4000 |
400
|
364
|
19.5
|
20
|
15
|
| GGDA1100 |
110
|
90
|
9.5
|
10
|
10
|
GGDA4200 |
420
|
384
|
19.5
|
20
|
15
|
| GGDA1150 |
115
|
95
|
9.5
|
10
|
10
|
GGDA4250 |
425
|
389
|
19.5
|
20
|
15
|
| GGDA1200 |
120
|
100
|
9.5
|
10
|
10
|
GGDA4500 |
450
|
414
|
19.5
|
20
|
15
|
| GGDA1250 |
125
|
105
|
9.5
|
10
|
10
|
GGDA4800 |
480
|
444
|
19.5
|
20
|
15
|
| GGDA1300 |
130
|
110
|
9.5
|
10
|
10
|
GGDA5000 |
500
|
464
|
19.5
|
20
|
15
|
| GGDA1350 |
135
|
115
|
9.5
|
10
|
10
|
GGDA5600 |
560
|
524
|
19.5
|
20
|
18
|
| GGDA1400 |
140
|
120
|
9.5
|
10
|
10
|
GGDA6000 |
600
|
564
|
19.5
|
20
|
18
|
| GGDA1450 |
145
|
125
|
9.5
|
10
|
10
|
GGDA6300 |
630
|
594
|
19.5
|
20
|
18
|
| GGDA1500 |
150
|
130
|
9.5
|
10
|
10
|
GGDA6500 |
650
|
614
|
19.5
|
20
|
18
|
| GGDA1550 |
155
|
135
|
9.5
|
10
|
10
|
GGDA7000 |
700
|
664
|
19.5
|
20
|
18
|
| GGDA1600 |
160
|
140
|
9.5
|
10
|
10
|
GGDA7200 |
720
|
684
|
19.5
|
20
|
18
|
| GGDA1700 |
170
|
150
|
9.5
|
10
|
10
|
GGDA7500 |
750
|
714
|
19.5
|
20
|
18
|
| GGDA1800 |
180
|
160
|
9.5
|
10
|
10
|
GGDA7800 |
780
|
744
|
19.5
|
20
|
18
|
| GGDA1900 |
190
|
170
|
9.5
|
10
|
10
|
GGDA8000 |
800
|
764
|
19.5
|
20
|
18
|
| GGDA2000 |
200
|
172
|
12.5
|
13
|
12
|
GGDA8500 |
850
|
814
|
19.5
|
20
|
18
|
| GGDA2100 |
210
|
182
|
12.5
|
13
|
12
|
GGDA9000 |
900
|
864
|
19.5
|
20
|
18
|
| GGDA2200 |
220
|
192
|
12.5
|
13
|
12
|
GGDA9500 |
950
|
914
|
19.5
|
20
|
18
|
| GGDA2250 |
225
|
197
|
12.5
|
13
|
12
|
GGDA9800 |
980
|
944
|
19.5
|
20
|
18
|
| GGDA2350 |
235
|
207
|
12.5
|
13
|
12
|
GGDA10000 |
1000
|
964
|
19.5
|
20
|
18
|
