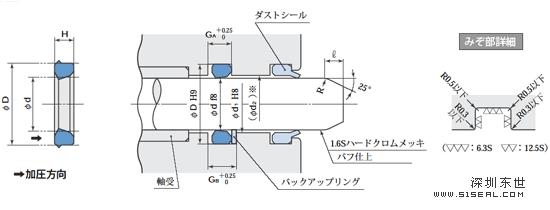

型号明细 密封件的公称尺寸及腔体尺寸 (単位：mm） 标准（RN906) 适用（PT111) D d H GA GB D1 D2 L *HSD-20 *TCS-20×14 20 14 1.9 2.4 4.4 19.5 19 1.5 *HSD-25 *TCS-25×17 25 17 2.6 3.2 5.2 24.5 24 2 *HSD-30 *TCS-30×22 30 22 2.6 3.2 5.2 29.5 29 2 *HSD-32 *TCS-32×24 32 24 2.6 3.2 5.2 31.5 30.5 2 *HSD-35 *TCS-35×27 35 27 2.6 3.2 5.2 34.5 33.5 2 *HSD-40 TCS-40×32 40 32 2.6 3.2 5.2 39.5 38.5 2 *HSD-40A TCS-40×30 40 30 3.4 4 7 39.5 38.5 2.5 *HSD-45 TCS-45×35 45 35 3.4 4 7 44.5 43.5 2.5 *HSD-50 TCS-50×40 50 40 3.4 4 7 49.5 48.5 2.5 *HSD-55 TCS-55×45 55 45 3.4 4 7 54.4 53 2.5 *HSD-60 TCS-60×50 60 50 3.4 4 7 59.4 58 2.5 *HSD-63 TCS-63×53 63 53 3.4 4 7 62.4 61 2.5 *HSD-65 TCS-65×55 65 55 3.4 4 7 64.4 63 2.5 *HSD-70 *TCS-70×55 70 55 5.2 6 10 69.4 68 3 *HSD-80 *TCS-80×65 80 65 5.2 6 10 79.4 78 3 *HSD-90 *TCS-90×75 90 75 5.2 6 10 89.4 88 3 *HSD-100 TCS-100×85 100 85 5.2 6 10 99.4 98 3
