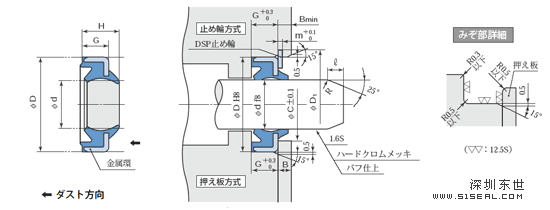

型号明细 密封件的公称尺寸及腔体尺寸（単位：mm） 标准（RN 814） d D H h C G B SCK-18 18 30 7.7 5.8 24 6 3 SCK-20 20 32 7.7 5.8 26 6 3 SCK-25 25 37 7.7 5.8 31 6 3 SCK-28 28 40 7.7 5.8 34 6 3 SCK-30 30 42 7.7 5.8 36 6 3 SCK-32 32 44 8.7 6.8 38 7 3 SCK-35 35 47 8.7 6.8 41 7 3 SCK-40 40 52 8.7 6.8 46 7 3 SCK-45 45 57 8.7 6.8 51 7 3 SCK-50 50 62 8.7 6.8 56 7 3 SCK-55 55 69 10 7.7 62 8 3 SCK-60 60 74 10 7.7 67 8 3 SCK-65 65 79 10 7.7 72 8 3 SCK-70 70 84 10 7.7 77 8 3 SCK-75 75 89 10 7.7 82 8 3 SCK-80 80 94 10 7.7 87 8 3 SCK-85 85 99 10 7.7 92 8 3 SCK-90 90 104 10 7.7 97 8 3 SCK-95 95 109 10 7.7 102 8 3 SCK-100 100 114 10 7.7 107 8 3 SCK-105 105 121 12 8.7 113 9 4 SCK-110 110 126 12 8.7 118 9 4 SCK-115 115 131 12 8.7 123 9 4 SCK-120 120 136 12 8.7 128 9 4 SCK-125 125 141 12 8.7 133 9 4 SCK-130 130 146 12 8.7 138 9 4 SCK-132 132 148 12 8.7 140 9 4 SCK-140 140 160 14 9.7 150 10 5 SCK-160 160 180 14 9.7 170 10 5
