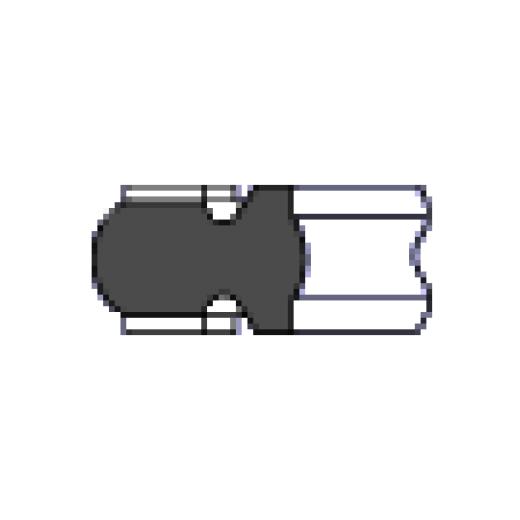

APD

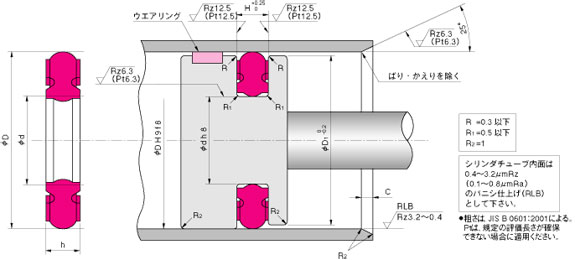

名义号 密封件公称尺寸 腔体尺寸 NOK零件号 d D h φd φD H C DSPB 4 4 8.9 　　2.1　　 4 8.9 2.2 3.5 ●GS5500V0 5 5 9.9 5 9.9 ●GS5501V0 6 6 10.9 6 10.9 ●GS5502V0 7 7 11.9 7 11.9 ●GS5503V0 8S 8 12.9 8 12.9 ●GS5504V0 8 15.3 3.1 15.3 3.2 ●GS5505V0 10S 10 14.9 2.1 10 14.9 2.2 ●GS5506V0 10 17.3 3.1 17.3 3.2 ●GS5507V0 12S 12 16.9 2.1 12 16.9 2.2 4.5 ●GS5508V0 12 19.3 3.1 19.3 3.2 ●GS5509V0 14S 14 18.9 2.1 14 18.9 2.2 ●GS5510V0 14 21.3 3.1 21.3 3.2 ●GS5511V0 15S 15 19.9 2.1 15 19.9 2.2 ●GS5512V0 15 22.3 3.1 22.3 3.2 ●GS5513V0 16S 16 20.9 2.1 16 20.9 2.2 ●GS5514V0 16 23.3 3.1 23.3 3.2 ●GS5515V0 18S 18 22.9 2.1 18 22.9 2.2 ●GS5516V0 18 25.3 3.1 25.3 3.2 ●GS5517V0 20S 20 27.3 20 27.3 ●GS5518V0 20 30.7 4.1 30.7 4.2 ●GS5519V0 22S 22 29.3 3.1 22 29.3 3.2 ●GS5520V0 22 32.7 4.1 32.7 4.2 ●GS5521V0 22.4S 22.4 29.7 3.1 22.4 29.7 3.2 ●GS5522V0 22.4 33.1 4.1 33.1 4.2 ●GS5523V0 25S 25 32.3 3.1 25 32.3 3.2 5.5 ●GS5524V0 25 35.7 4.1 35.7 4.2 ●GS5525V0 28S 28 35.3 3.1 28 35.3 3.2 ●GS5526V0 28 38.7 4.1 38.7 4.2 ●GS5527V0 30S 30 37.3 3.1 30 37.3 3.2 ●GS5528V0 30 40.7 4.1 40.7 4.2 ●GS5529V0



名义号 密封件公称尺寸 腔体尺寸 NOK零件号 d D h φd φD H C DSPB 32S 32 39.3 3.1 32 39.3 3.2 5.5 GS5530V0 32 42.7 4.1 42.7 4.2 GS5531V0 35S 35 42.3 3.1 35 42.3 3.2 GS5532V0 35 45.7 4.1 45.7 4.2 GS5533V0 35.5S 35.5 42.8 3.1 35.5 42.8 3.2 GS5534V0 35.5 46.2 4.1 46.2 4.2 GS5535V0 36S 36 43.3 3.1 36 43.3 3.2 GS5536V0 36 46.7 4.1 46.7 4.2 GS5537V0 38S 38 48.7 38 48.7 GS5538V0 38 53.1 6.1 53.1 6.3 GS5539V0 40S 40 50.7 4.1 40 50.7 4.2 GS5540V0 40 55.1 6.1 55.1 6.3 GS5541V0 42S 42 52.7 4.1 42 52.7 4.2 GS5542V0 42 57.1 6.1 57.1 6.3 GS5543V0 45S 45 55.7 4.1 45 55.7 4.2 GS5544V0 45 60.1 6.1 60.1 6.3 GS5545V0 50S 50 60.7 4.1 50 60.7 4.2 GS5546V0 50 65.1 6.1 65.1 6.3 GS5547V0 56S 56 66.7 4.1 56 66.7 4.2 7 GS5548V0 56 71.1 6.1 71.1 6.3 GS5549V0 60S 60 70.7 4.1 60 70.7 4.2 GS5550V0 60 75.1 6.1 75.1 6.3 GS5551V0 63 63 78.1 63 78.1 GS5552V0 65 65 80.1 65 80.1 GS5553V0 67 67 82.1 67 82.1 GS5554V0 70 70 85.1 70 85.1 GS5555V0 71 71 86.1 71 86.1 GS5556V0 75 75 90.1 75 90.1 GS5557V0 80 80 95.1 80 95.1 GS5558V0 85 85 100.1 85 100.1 GS5559V0 90 90 105.1 90 105.1 GS5560V0 95 95 110.1 95 110.1 GS5561V0 100 100 115.1 100 115.1 GS5562V0 105 105 120.1 105 120.1 GS5563V0 110 110 125.1 110 125.1 GS5564V0 112 112 127.1 112 127.1 GS5565V0 115 115 130.1 115 130.1 GS5566V0 120 120 135.1 120 135.1 GS5567V0 125 125 140.1 125 140.1 GS5568V0 130 130 145.1 130 145.1 GS5569V0 135 135 150.1 135 150.1 GS5570V0 140 140 155.1 140 155.1 GS5571V0 150 150 165.1 150 165.1 GS5572V0 160 160 175.1 160 175.1 GS5573V0 170 170 185.1 170 185.1 GS5574V0 180 180 195.1 180 195.1 GS5575V0
