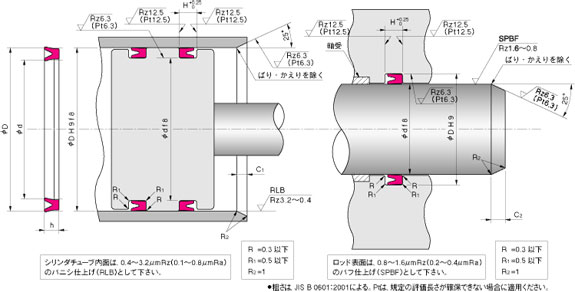

密封件公称尺寸 腔体尺寸 NOK零件号 d D t h φd φD φd1 H C r 8 12 3.5 4.25 8 12 9.6 4 1.5 0.5 CQ0264B0 10 14 3.5 4.25 10 14 11.6 4 1.5 0.5 CQ0265B0 12 16 3.5 4.25 12 16 13.6 4 1.5 0.5 CQ0266B0 14 18 3.5 4.25 14 18 15.6 4 1.5 0.5 CQ0289B0 16 24 5.5 6.9 16 24 19.4 6 2.0 0.6 CQ0267B0 20 28 5.5 6.9 20 28 23.4 6 2.0 0.6 CQ0290B0 25 33 5.5 6.9 25 33 28.4 6 2.0 0.6 CQ0291B0 30 40 6.5 8.2 30 40 34.0 7 2.5 0.8 CQ0292B0 32 42 6.5 8.2 32 42 36.0 7 2.5 0.8 CQ0293B0 35 45 6.5 8.2 35 45 39.0 7 2.5 0.8 CQ0294B0 40 50 6.5 8.2 40 50 44.0 7 2.5 0.8 CQ0295B0 45 55 6.5 8.2 45 55 49.0 7 2.5 0.8 CQ0254B0
