WRT-WR1

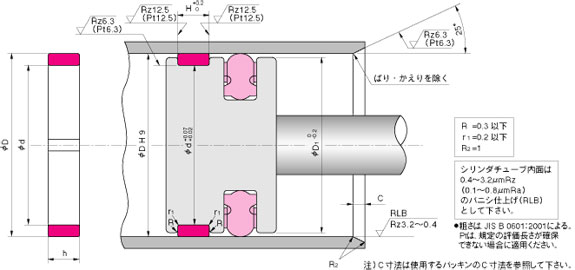

密封件公称尺寸 腔体尺寸 NOK零件号 d D h φd φD H C1 C2 3 6 2.1 3 6 2.5 2 1.5 CU2968Z3 4 7 2.1 4 7 2.5 2 1.5 CU2637Z1 5 8 2.1 5 8 2.5 2 1.5 CU3221Z1 6 9 2.1 6 9 2.5 2 1.5 CU3125Z2 7 10 2.1 7 10 2.5 2 1.5 CU3013Z1 8 11 2.1 8 11 2.5 2 1.5 CU3144Z1 9 12 2.1 9 12 2.5 2 1.5 CU3421Z0 10 13 2.1 10 13 2.5 2 1.5 CU3149Z1 10 14 2.8 10 14 3.2 2.5 2 CU3460Z0 11 15 2.8 11 15 3.2 2.5 2 CU3422Z0 11.2 15.2 2.8 11.2 15.2 3.2 2.5 2 CU3461Z0 12 16 2.8 12 16 3.2 2.5 2 CU3168Z1 12.5 16.5 2.8 12.5 16.5 3.2 2.5 2 CU3462Z0 14 18 2.8 14 18 3.2 2.5 2 CU3423Z0 15 19 2.8 15 19 3.2 2.5 2 CU3424Z0 16 20 2.8 16 20 3.2 2.5 2 CU3425Z0 18 22 2.8 18 22 3.2 2.5 2 CU3282Z1 20 24 2.8 20 24 3.2 2.5 2 CU3426Z0 21 25 2.8 21 25 3.2 2.5 2 CU3427Z0 22 26 2.8 22 26 3.2 2.5 2 CU3463Z0 24 30 4.2 24 30 4.7 3 3 CU2341Z0 34 40 4.2 34 40 4.7 3 3 CU3428Z0
