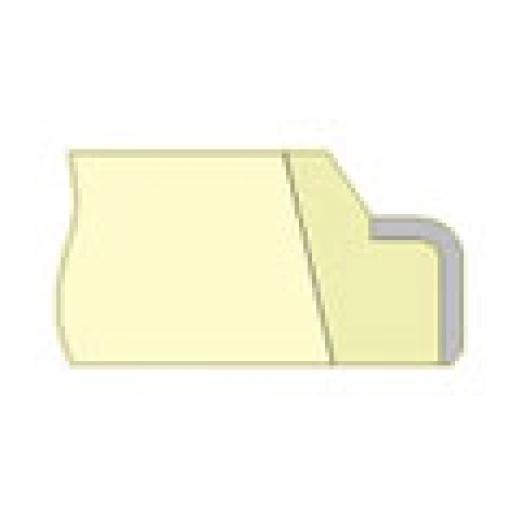

DZ Metal Clad Wiper金属骨架防尘密封件- ME-3 TD>

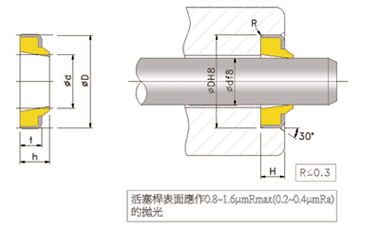

品名 d D t h H 品名 d D t h H ME-3 6.3 16 5 7 5 ME-3 53 67 8 11 8 ME-3 10 20 5 7 5 ME-3 55 69 8 11 8 ME-3 11.2 21 5 7 5 ME-3 56 70 8 11 8 ME-3 12.5 23 5 7 5 ME-3 60 74 8 11 8 ME-3 14 24 5 7 5 ME-3 63 77 8 11 8 ME-3 15 25 5 7 5 ME-3 64 78 8 11 8 ME-3 16 26 5 7 5 ME-3 65 79 8 11 8 ME-3 18 28 7 10 7 ME-3 67 81 8 11 8 ME-3 18 30 6 9 6 ME-3 70 84 8 11 8 ME-3 20 30 5 7 5 ME-3 71 85 8 11 8 ME-3 20 32 6 9 6 ME-3 75 89 8 11 8 ME-3 22.4 34.4 6 9 6 ME-3 76.2 85.72 4.75 7.14 4.75 ME-3 25 37 6 9 6 ME-3 80 94 8 11 8 ME-3 27 39 6 9 6 ME-3 85 99 8 11 8 ME-3 28 40 6 9 6 ME-3 90 104 8 11 8 ME-3 30 40 5 7 5 ME-3 95 109 8 11 8 ME-3 30 42 6 9 6 ME-3 100 114 8 11 8 ME-3 30 45 7 10 7 ME-3 105 121 9 12 9 ME-3 31.5 44 7 10 7 ME-3 110 126 9 12 9 ME-3 31.75 41.28 4.75 7.14 4.75 ME-3 115 131 9 12 9 ME-3 32 44 7 10 7 ME-3 120 136 9 12 9 ME-3 35 47 7 10 7 ME-3 125 140 9 12 9 ME-3 35.5 47.5 7 10 7 ME-3 125 141 9 12 9 ME-3 38 50 7 10 7 ME-3 140 160 10 14 10 ME-3 38.1 47.63 4.75 7.14 4.75 ME-3 150 170 10 14 10 ME-3 40 52 7 10 7 ME-3 160 180 10 14 10 ME-3 45 57 7 10 7 ME-3 170 190 10 14 10 ME-3 50 60 7 10 7 ME-3 175 195 10 14 10 ME-3 50 62 7 10 7 ME-3 180 205 12 17 12
